4W-B55FT5U

Effectively Collaborate with New Immersive Display

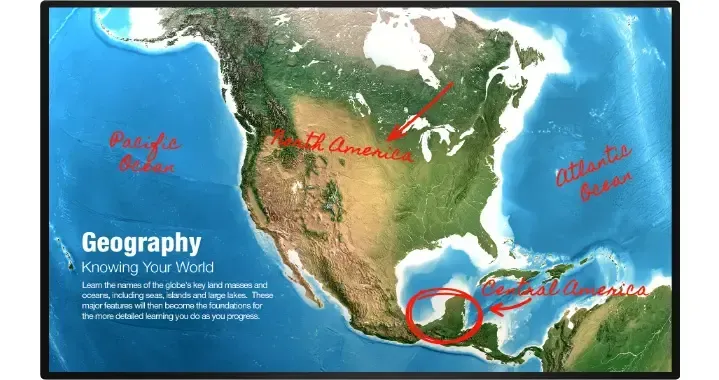

4W-B55FT5U AQUOS BOARD® Collaboration Display

From the boardroom to the classroom, Sharp's 4W-B series AQUOS BOARD® collaboration displays add interoperability and collaboration to any environment. The Sharp 4W-B55FT5U - 55" Class AQUOS BOARD® collaboration display enables collaboration and communication in the workplace, classroom and virtually anywhere through precise 20-point multi-touch functionality and versatile connectivity. A powerful RS-232C and LAN command set facilitates flexible wireless remote control from connected devices. Wireless screen casting** and an HTML5 browser allow for viewing various types of content onto the large format display.

Download Brochure
Chocolate promotion: 30% off. Heart-shaped chocolate with dripping design, set against an orange background, with chocolate logo samples.

Features

  • 55" Class (54.6" diagonal) Screen Size
  • Brilliant 4K-Ultra High Definition (3840 x 2160) LCD Display
  • Streamlined Design using Direct LED Backlighting
  • HDR10
  • Wireless casting capability**
  • Built-in 8W per Channel Stereo Audio System
  • 20-Point Multi-Touch Screen
  • 3-Year Limited Warranty
  • Built-in Digital Tuner
  • RS-232C control capability
  • SHARP Pen Software

*Screen image simulated.

**Windows and Android OS are supported.

Options

Synappx Go



Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!

Product Specifications

Display
Panel Technology TFT LCD
Viewable Image Size 55"
Aspect Ratio 16:9
Screen Resolution 3840x2160
Supported Resolutions 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i
Module Resolution 3840 x 2160
Pixel Pitch 0.315 mm
Pixels Per Inch 81 PPI
Backlight Type LED Direct-lit
Brightness (typical) 270 cd/m2
Contrast Ratio (typical) 1300:1
Viewing Angle (typical) 178°/178° (CR≧10)
Refresh Rate 60Hz
Active Screen Area 48.5" x 28.2 / 1,232 x 623
Orientation Landscape
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 31.5kHz - 135.0kHz
Vertical 24Hz-75Hz
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
External Control LAN In/Out and RS232 In - Full external control capabilities
Analog N/A
Digital HDMI (2.0 x 3 with HDCP 2.2)
External Control RS-232C, LAN (100Mb), USB Card (Media Player)
Data USB 2.0 x 2 (Media Player, USB (Service), USB Type-C (Touch), USB 1 x 5V/2A Powered)
Audio 3.5mm-diameter stereo mini jack x 1
External Control D-sub 9 pin x 1
Bezel Width (Left/Right, Top/Bottom) 0.63 in./0.63 in., 0.63 in./0.67 in. : 16 mm/16 mm, 16 mm/17 mm
Dimensions(WxHxD) 49.8 x 29.5 x 3.31 in.
Net Weight 51.6 lbs. / 23.4 kg. Shipping: 61.29 lbs
VESA Hole Configuration Without stand: 300mm x 200mm (M6 x 4-hole)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 20% to 80% (no condensation)

Limited Warranty (Parts & Labor)

5 years

Additional Features

  • 4K Resolution
  • 4K Ready
  • 60 Hz LED Frame Rate
  • Built-In Closed Captioning
  • Built-In NTSC/ATSC analog/digital tuner
  • Built-In Speakers
  • Integrated MultiMedia Player
  • LED Backlight
  • Power Management
  • Programmable Timer
  • Sleep Timer
  • Wired Network Connection
  • RS-232C and LAN control capability
  • TAA Compliant
  • SHARP Pen Software®
  • Pen-on-paper®
  • Contrast Ratio (1300:1)

Optical

Display Technology TFT LCD

Accessories

Included:

  • Remote control unit:1
  • Remote control battery ("AAA"):2
  • Setup Guide: 1
  • RS232C conversion cable (3.5mm-diameter mini stereo jack):1
  • Touch Pen: 2
  • USB cable:1
  • USB adapter:1
  • USB flash drive (Utility for Windows): 1

Optional:

  • Shuttle PN-SPCi5W10C8GB signage PC

Cooling Method

Fanless - Convection

  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Sleep Timer (Large Format Displays)
  • Countdown timer can be set to automatically turn off the display.
  • Built-In NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Allows for high-definition broadcast capabilities.
  • Three HDMI inputs
  • Allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
  • Built-In Speakers
  • Enhance the visual experience with superior sound
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
  • V-Chip Function
  • Also known as parental control, allows users to block programs based on rating category.
  • Built-In Closed Captioning
  • Enables decoding and display of text information from a video.
  • LED Backlight
  • Provides for industry-leading low power consumption and less hazardous materials.
  • 4K Resolution
  • Provides the ultimate in screen clarity.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • Integrated MultiMedia Player
  • Allows the ability to play video, audio or image files directly off USB.
