PN-L652B

Enjoy A More Natural Way of Working

PN-L652B AQUOS BOARD® Collaboration Display

The SHARP PN-L652B AQUOS BOARD® collaboration display combines genuine “4K reading and writing” and an intuitive “Pen-on-Paper” user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-L652B AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.

Download Brochure

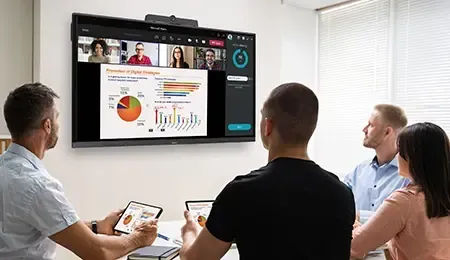

People in a meeting room watching a presentation on a large screen with remote participants.

Features

  • 65" Class (64.5” diagonal) Screen Size
  • Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
  • 20-Point PrecisionTouch Screen Technology
  • Built-in SoC controller with Arm® Cortex® - A73 quad-core processor
  • Built-in Whiteboard application for quick meeting notes
  • SHARP Pen Software Included to create on-screen annotations and graphics***
  • Optional PN-ZCMS1 AV Soundbar available
  • Built-in Wireless LAN and Bluetooth® connectivity for wireless presentations**
  • 5-Year Limited Warranty
  • 400 cd/m2 Brightness; 4,000:1 Contrast Ratio
  • Built-In 10W per Channel Stereo Audio System
  • OPS – Compliant Expansion Slot

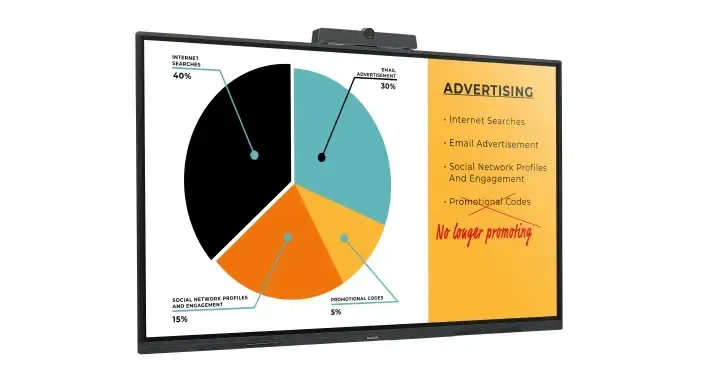

Interactive screen displaying pie chart and text about advertising; camera mounted at the top.

*Screen image simulated.

**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome OS

***Available for download via included download application

Options

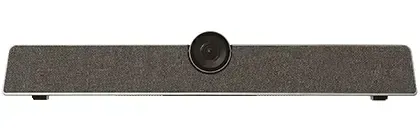

AV Soundbar PN-ZCMS1


All-in-one unified communication soundbar incl. speaker, microphone and camera

Product Specifications

Display
Panel Technology TFT LCD
Viewable Image Size 65"
Aspect Ratio 16:9
Screen Resolution 3840x2160
Supported Resolutions 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i
Pixel Pitch 0.372 mm
Backlight Type LED Direct-lit
Brightness (typical) 400 cd/m2
Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 178°/178° (CR≧10)
Response Time (Gray to Gray) 6.5 ms
Refresh Rate 60Hz
Active Screen Area 56.25" x 31.63" / 1,428.5 x 803.5 mm
Orientation Landscape
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 31.5kHz - 135.0kHz
Vertical 24Hz-70Hz

Input Signal

Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
External Control LAN In/Out and RS232 In - Full external control capabilities Input Terminals
Analog VGA 15-pin D-sub
Digital HDMI x 3 USB Type-C x 1
External Control RS-232C, LAN, IR Remote
Data USB 3.0, USB 2.0, USB for Touch Panel x 2, USB Type C port
Digital Digital audio output (optical) x 1
Audio 3.5mm-diameter stereo mini jack x 1
External Control D-sub 9 pin x 1
On 330W
ECO Mode Standby 0.5W
Network Standby 0.5W
Power Consumption (max) 330 W
Power Savings Mode 0.5W
Bezel Width (Left/Right, Top/Bottom) 0.56 in./0.56 in., 0.56 in./1.69 in. : 14.6 mm/14.6 mm, 14.6 mm/43.5 mm
Dimensions(WxHxD) 58.6 x 35.31 x 3.38 in.
Shipping (WxHxD) 64.1" x 39.6" x 8.2"
Net Weight 80.5 lbs. / 36.5 kg.
VESA Hole Configuration 600 x 400mm (M8 x 4-hole)
Operating Temperature 41°F to 95°F (5°C to 35°C)
Operating Humidity 20% to 80% (no condensation)

Limited Warranty (Parts & Labor)

5 years

More Information

Additional Features

  • 4K Resolution
  • 4K Ready
  • 60 Hz LED Frame Rate
  • Built-In Speakers
  • LED Backlight
  • Power Management
  • Built-in SoC Controller
  • Wired Network Connection
  • LAN control capability
  • Pen-on-paper®
  • Contrast Ratio (4000:1)
  • Crestron Connected

Optical

Display Technology TFT LCD

Accessories

Included:

  • AC power cord:1
  • Remote control unit:1
  • Remote control unit battery (AAA size) : 2
  • Setup manual:1
  • Blank sticker(cover SHARP logo):1
  • Cable clamp:4
  • Camera mount:1
  • Camera mount screw:2
  • Player mount:1
  • Player mount screw: 2
  • Wireless adapter:1
  • USB cable:1
  • Touch pen:2

Optional:

  • Shuttle PN-SPCi7W10C8GB signage PC
  • SHARP PN-ZCMS1 AV Soundbar

Cooling Method

Fanless - Convection

  • Integrated MultiMedia Player
  • Allows the ability to play video, audio or image files directly off USB.
  • Built-In Expansion Slot
  • Allows for seamless integration of current and future accessories and third-party components.
  • Three HDMI inputs
  • Allows for simultaneous digital connections of high-definition sources.
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Open Pluggable Specification (OPS)
  • The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.
  • LED Backlight
  • Provides for industry-leading low power consumption and less hazardous materials.
  • 4K Resolution
  • Provides the ultimate in screen clarity.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • Wireless LAN (Optional)
  • Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
