PN-L752B
Enjoy A More Natural Way of Working

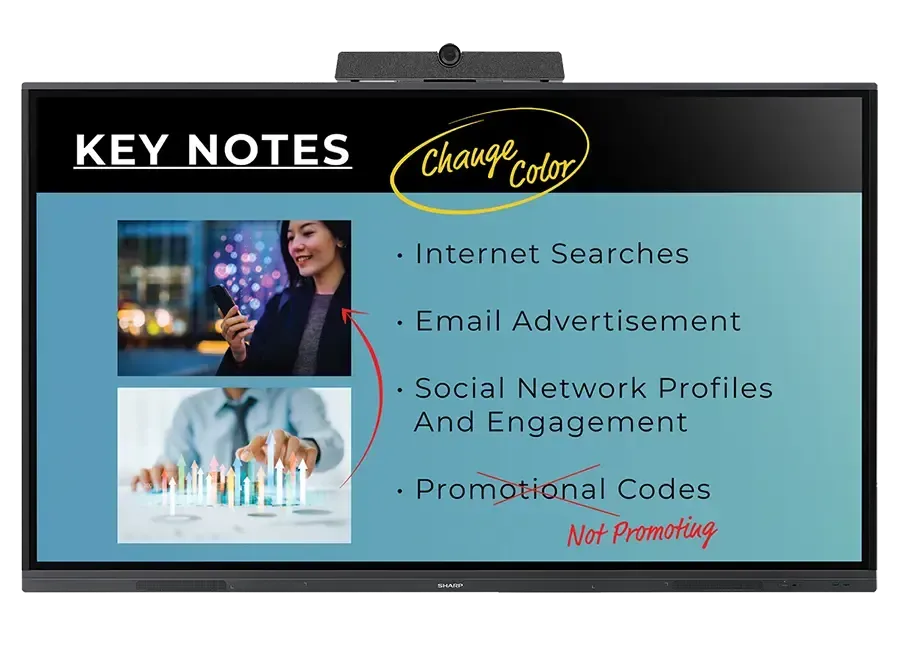

PN-L752B AQUOS BOARD® Collaboration Display
The SHARP PN-L752B AQUOS BOARD® collaboration display combines genuine "4K reading and writing" and an intuitive "Pen-on-Paper" user experience with Zero Bonding and Sharp's PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-L752B AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.
Features
- 75" Class (74 1/2" diagonal) Screen Size
- Brilliant 4K-Ultra High Definition (3840 x 2160) LCD Display
- 20-Point PrecisionTouch Screen Technology
- Built-in SoC controller with Arm® Cortex® - A73 quad-core processor
- Built-in Whiteboard application for quick meeting notes
- SHARP Pen Software Included to create on-screen annotations and graphics***
- Optional PN-ZCMS1 AV Soundbar available
- Built-in Wireless LAN and Bluetooth® connectivity for wireless presentations**
- 5-Year Limited Warranty
- 400 cd/m2 Brightness; 5,000:1 Contrast Ratio
- Built-In 10W per Channel Stereo Audio System
- OPS – Compliant Expansion Slot
*Screen image simulated.
**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS
***Available for download via included download application
Options
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
Product Specifications
| Display | |
|---|---|
| Panel Technology | TFT LCD |
| Viewable Image Size | 75" |
| Aspect Ratio | 16:9 |
| Screen Resolution | 3840x2160 |
| Supported Resolutions | 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i |
| Pixel Pitch | 0.42975 mm |
| Backlight Type | LED Direct-lit |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 5000:1 |
| Viewing Angle (typical) | 178°/178° (CR≧10) |
| Response Time (Gray to Gray) | 8.5 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 64.94" x 36.56" / 1,650.2 x 928.3 mm |
| Orientation | Landscape |
| Displayable Colors | 1.07 billion |
Synchronization Range
| Horizontal (Analog/Digital) | 31.5kHz - 135.0kHz |
| Vertical | 24Hz-70Hz |
Input Signal
| Video | Analog RGB (0.7 Vp-p) [75Ω] |
| Sync | Horizontal/vertical separation (TTL: positive/negative) |
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| Video | Analog RGB (0.7 Vp-p) [75Ω] |
| Sync | Horizontal/vertical separation (TTL: positive/negative) |
| External Control | LAN In/Out and RS232 In - Full external control capabilities |
| Analog | VGA 15-pin D-sub |
| Digital | HDMI x 3 USB Type-C x 1 |
| Audio | 3.5mm mini stereo jack |
| External Control | RS-232C, LAN, IR Remote |
| Data | USB 3.0, USB 2.0, USB for Touch Panel x 2, USB Type C port |
| Digital | Digital audio output (optical) x 1 |
| Audio | 3.5mm-diameter stereo mini jack x 1 |
| External Control | D-sub 9 pin x 1 |
| On | 400W |
| ECO Mode Standby | 0.5W |
| Network Standby | 0.5W |
| Power Consumption (max) | 400W |
| Power Savings Mode | 0.5W |
| Bezel Width (Left/Right, Top/Bottom) | 0.56 in./0.56 in., 0.56 in./1.69 in. : 14.6 mm/14.6 mm, 14.6 mm/43.5 mm |
| Dimensions(WxHxD) | 58.6 x 35.31 x 3.38 in. |
| Shipping (WxHxD) | 64.1" x 39.6" x 8.2" |
| Net Weight | 80.5 lbs. / 36.5 kg. |
| VESA Hole Configuration | 600 x 400mm (M8 x 4-hole) |
| Operating Temperature | 41°F to 95°F (5°C to 35°C) |
| Operating Humidity | 20% to 80% (no condensation) |
Limited Warranty (Parts & Labor)
5 years
Additional Features
- 4K Resolution
- 4K Ready
- 60 Hz LED Frame Rate
- Built-In Speakers
- LED Backlight
- Power Management
- Built-in SoC Controller
- Wired Network Connection
- LAN control capability
- Pen-on-paper®
- Contrast Ratio (4000:1)
- Crestron Connected
Optical
| Display Technology | TFT LCD |
Accessories
Included:
- AC power cord:1
- Remote control unit:1
- Remote control unit battery (AAA size) : 2
- Setup manual:1
- Blank sticker(cover SHARP logo):1
- Cable clamp:4
- Camera mount:1
- Camera mount screw:2
- Player mount:1
- Player mount screw: 2
- Wireless adapter:1
- USB cable:1
- Touch pen:2
Optional:
- Shuttle PN-SPCi7W10C8GB signage PC
- SHARP PN-ZCMS1 AV Soundbar
Cooling Method
Fanless - Convection
- USB Viewer
- Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
- RS-232C and LAN control capability
- Permits flexible remote-control capabilities from connected devices.
- Open Pluggable Specification (OPS)
- The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.
- LED Backlight
- Provides for industry-leading low power consumption and less hazardous materials.
- Built-In Speakers
- Enhance the visual experience with superior sound.
- Wired Network Connection
- Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
- Wireless LAN (Optional)
- Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
- Integrated MultiMedia Player
- Allows the ability to play video, audio or image files directly off USB.
- Built-In Expansion Slot
- Allows for seamless integration of current and future accessories and third-party components.
- Three HDMI inputs
- Allows for simultaneous digital connections of high-definition sources.
- 4K Resolution
- Provides the ultimate in screen clarity.
- Round-The-Clock Scheduler
- Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
