PN-LA862

Safeguarding Security and Promoting Productivity in Hybrid Meetings

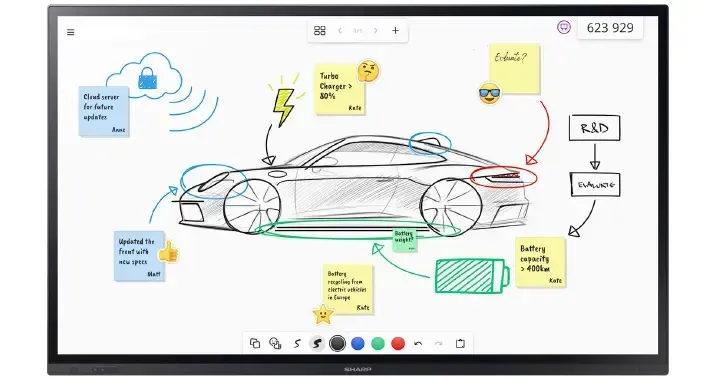

PN-LA862 AQUOS BOARD® Collaboration Display

Bringing advanced professional functionality to enterprise users, the Sharp PN-LA series ensures compliance with the highest IT security standards while providing maximum flexibility. A built-in SDM expansion slot includes a pre-installed Windows® 11 Pro PC featuring an Intel™ Core i5 Tiger Lake CPU. This expands the display's customizable capabilities, enabling safe and seamless integration into corporate IT systems. Users can also benefit from pre-installed functionalities such as the Sharp Meeting Launcher for quick access to favorite apps and VC platforms, FlatFrog Board collaborative whiteboarding software and AirServer™ mirroring software for wireless screen sharing.

Download Brochure
Two people in a modern office using a digital whiteboard with architectural designs.

Features

  • 86" Class (85.6" diagonal) Screen Size
  • Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
  • FlatFrog Board Software for Rooms (1 year) - free download
  • 20–Point InGlass™ M5 (IR) touch screen
  • Pre-installed SDM Windows®
  •  11 Pro PC with Intel™
  •  Core i5 Tiger Lake CPU
  • 500 cd/m2 Brightness; 1,200:1 Contrast Ratio
  • EnergyStar 8.0 Certified
  • Optional PN-ZCMS1 AV Soundbar available
  • 5-Year Limited Warranty
  • Built-In 10W per Channel Stereo Audio System
Interactive screen displaying pie chart and text about advertising; camera mounted at the top.

Options

AV Soundbar PN-ZCMS1


All-in-one unified communication soundbar incl. speaker, microphone and camera

Synappx Go


Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!

Product Specifications

Display
Panel Technology TFT LCD
Viewable Image Size 86"
Aspect Ratio 16:9
Screen Resolution 3840x2160
Supported Resolutions 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i
Module Resolution 3840x2160
Pixel Pitch 0.42975 mm
Backlight Type LED Direct-lit
Brightness (typical) 400 cd/m2
Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178°/178° (CR≧10)
Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz
Active Screen Area 74.63" x 41.94" / 1,895 x 1,066 mm
Orientation Landscape
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 31.5kHz - 135.0kHz
Vertical 24Hz-70Hz

Input Signal

Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
External Control LAN In/Out and RS232 In - Full external control capabilities
Analog VGA 15-pin D-sub
Digital HDMI x 3 USB Type-C x 1
Audio 3.5mm mini stereo jack
External Control RS-232C, LAN, IR Remote
Data USB 3.0, USB 2.0, USB for Touch Panel x 2, USB Type C port
Digital Digital audio output (optical) x 1
Audio 3.5mm-diameter stereo mini jack x 1
External Control D-sub 9 pin x 1
On 470W
ECO Mode Standby 0.5W
Network Standby 0.5W
Power Consumption (max) 470W
Power Savings Mode 0.5W
Bezel Width (Left/Right, Top/Bottom) 0.56 in./0.56 in., 0.56 in./1.69 in. : 14.6 mm/14.6 mm, 14.6 mm/43.5 mm
Dimensions(WxHxD) 77.1 x 45.63 x 3.38 in.
Shipping (WxHxD) 83" x 50.5" x 8.9"
Net Weight 137.8 lbs. / 62.5 kg.
VESA Hole Configuration 800 x 600mm (M8 x 4-hole)
Operating Temperature 41°F to 95°F (5°C to 35°C)
Operating Humidity 20% to 80% (no condensation)

Limited Warranty (Parts & Labor)

5 years

More Information

Additional Features

  • 4K Resolution
  • 4K Ready
  • 60 Hz LED Frame Rate
  • Built-In Speakers
  • LED Backlight
  • Power Management
  • Built-in SoC Controller
  • Wired Network Connection
  • LAN control capability
  • Pen-on-paper®
  • Contrast Ratio (1200:1)
  • Crestron Connected

Optical

Display Technology TFT LCD

Accessories

Included:

  • AC power cord:1
  • Remote control unit:1
  • Remote control unit battery (AAA size) : 2
  • Setup manual:1
  • Blank sticker(cover SHARP logo):1
  • Cable clamp:4
  • Camera mount:1
  • Camera mount screw:2
  • Player mount:1
  • Player mount screw: 2
  • Wireless adapter:1
  • USB cable:1
  • Touch pen:2

Optional:

  • PN-ZCMS1 AV Soundbar

Cooling Method

Fanless - Convection

  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • Three HDMI inputs
  • Allows for simultaneous digital connections of high-definition sources.
  • Wireless LAN (Optional)
  • Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
  • Open Pluggable Specification (OPS)
  • The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.
  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • 4K Resolution
  • Provides the ultimate in screen clarity.
  • LED Backlight
  • Provides for industry-leading low power consumption and less hazardous materials.
  • Built-In Expansion Slot
  • Allows for seamless integration of current and future accessories and third-party components.
  • Integrated MultiMedia Player
  • Allows the ability to play video, audio or image files directly off USB.

3 Year Coverage

  • ADVEXMX-3Y-18: Advanced Exchange 2 Day Freight Service+
  • ONSTEMX-3Y-18: Onsite 2 Day Freight Service+

4 Year Coverage

  • ADVEXMX-4Y-18: Advanced Exchange 2 Day Freight Extended Warranty 4 Years
  • EXTWRMX-4Y-18: Extended Warranty 4 Years
  • ONSTEMX-4Y-18: Onsite 2 Day Freight Extended Warranty 4 Years
  • ADVEXMX-5Y-18: Advanced Exchange 2 Day Freight Extended Warranty 5 Years
  • EXTWRMX-5Y-18: Extended Warranty 5 Years
  • ONSTEMX-5Y-18: Onsite 2 Day Freight Extended Warranty 5 Years


Note: Extended warranties are not valid in personal residences.
