PN-LC652

Enjoy A More Natural Way of Working

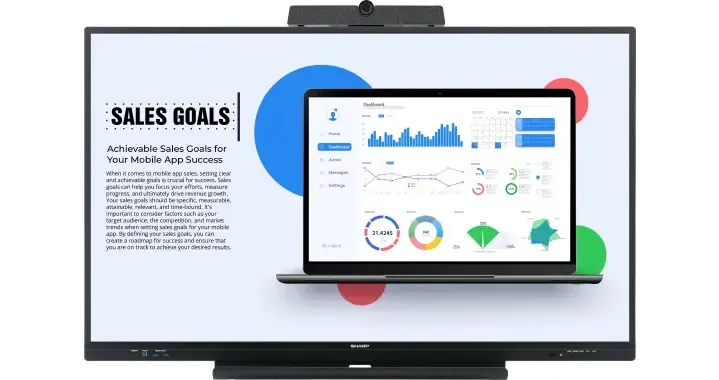

PN-LC652 AQUOS BOARD® Collaboration Display

The SHARP PN-LC652 AQUOS BOARD® collaboration display combines genuine 4K Ultra-HD resolution and an intuitive "Pen-on-Paper" user experience. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The PN-LC652 AQUOS BOARD collaboration display also features an integrated controller with whiteboard, overlay, and wireless functionality to help enhance your productivity.

Download Brochure
Two people in a modern office using a digital whiteboard with architectural designs.

Features

  • 65" Class (64.5" diagonal) Screen Size
  • Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
  • Built-in SoC controller with Arm® Cortex® - A55 quad-core processor
  • Built-in Whiteboard application for quick meeting notes
  • SHARP Pen Software Included to create on-screen annotations and graphics***
  • Optional PN-ZCMS1 AV Soundbar available
  • SHARP Touch Viewer™ Software provides Easy Manipulation of Multiple File Types**
  • Built-in 15W per Channel Stereo Audio System
  • 5-Year Limited Warranty
  • Built-in Wireless LAN and Bluetooth® connectivity for wireless presentations**
  • 450 cd/m2 Brightness; 1,200:1 Contrast Ratio
  • OPS – Compliant Expansion Slot
Smartboard displays

*Screen image simulated.

**Compatible with Windows®, Android™, iOS®, macOS®, iPadOS®, Chrome™ OS

***Available for download via included download application

Options

AV Soundbar PN-ZCMS1


All-in-one unified communication soundbar incl. speaker, microphone and camera

Synappx Go


Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!

Product Specifications

Display
Panel Technology TFT LCD
Viewable Image Size 65"
Aspect Ratio 16:9
Screen Resolution 3840x2160
Supported Resolutions 640 × 480, 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024, 1360 × 768, 1440 × 900, 1680 × 1050, 1280 × 720, 1920 × 1080, 3840 × 2160, 4096 x 2160, 720 x 400, 4096 x 2160p, 3840 x 2160p, 1920 x 1080p, 1920 x 1080i, 1280 x 720p, 720 x 576p, 720 x 480p, 640 x 480p, 720(1440) × 576i, 720(1440) × 480i
Module Resolution 3840x2160
Pixel Pitch 0.372 mm
Backlight Type LED Direct-lit
Brightness (typical) 450 cd/m2
Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178°/178° (CR≧10)
Response Time (Gray to Gray) 6.5 ms
Refresh Rate 60Hz
Active Screen Area 56-1/4" x 31-5/8"
Orientation Landscape
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 31.5kHz - 135.0kHz
Vertical 24Hz-70Hz

Input Signal

Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Video Analog RGB (0.7 Vp-p) [75Ω]
Sync Horizontal/vertical separation (TTL: positive/negative)
External Control LAN In/Out and RS232 In - Full external control capabilities
Analog VGA 15-pin D-sub
Digital HDMI (2.0 x 3 with HDCP 2.3), USB-C x1, Display Port 1.2 (HDCP compatible) x 1
Audio 3.5mm mini stereo jack
External Control RS-232C, LAN, IR Remote
Data USB (3.0 compliant) (Type A) x 2, USB (3.0 compliant) (Type B) x 1
Digital HDMI x 1, S/PDIF x 1, Digital audio output (optical) x 1
Audio 3.5mm-diameter stereo mini jack x 1
On 180W
ECO Mode Standby 0.5W
Network Standby 0.5W
Power Consumption (max) 390W
Power Savings Mode 0.5W
Bezel Width (Left/Right, Top/Bottom) 0.86 in./0.86 in., 0.86 in./2.09 in. : 21.9 mm/21.9 mm, 21.9 mm/53.2 mm
Dimensions(WxHxD) 59.5 x 36.1 x 3.4 in.
Shipping (WxHxD) 65.3" x 44.4" x 8.85"
Net Weight 84.9 lbs. / 38.5 kg. kg.
VESA Hole Configuration 600 x 400mm (M8 x 4-hole)
Operating Temperature 41°F to 95°F (5°C to 35°C)
Operating Humidity 20% to 80% (no condensation)

Limited Warranty (Parts & Labor)

5 years

More Information

Additional Features

  • 4K Resolution
  • 4K Ready
  • 60 Hz LED Frame Rate
  • Built-In Speakers
  • LED Backlight
  • Power Management
  • Built-in SoC Controller
  • Wired Network Connection
  • LAN control capability
  • Pen-on-paper®
  • Contrast Ratio (1200:1)

Optical

Display Technology TFT LCD

Accessories

  • AC power cord:1
  • Remote control unit:1
  • Remote control unit battery (AAA size) : 2
  • Setup manual:1
  • Blank sticker(cover SHARP logo):1
  • Cable clamp:3
  • Camera mount:1
  • Camera mount screw:1
  • Pen tray:1
  • Tray mount screw: 4
  • Wireless adapter:1
  • USB cable:1
  • Touch pen:2

Optional:

  • Shuttle PN-SPCi7W10C8GB signage PC

Cooling Method

Fanless - Convection

  • Built-In Expansion Slot
  • Allows for seamless integration of current and future accessories and third-party components.
  • Open Pluggable Specification (OPS)
  • The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • LED Backlight
  • Provides for industry-leading low power consumption and less hazardous materials.
  • Integrated MultiMedia Player
  • Allows the ability to play video, audio or image files directly off USB.
  • 4K Resolution
  • Provides the ultimate in screen clarity.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • Wireless LAN (Optional)
  • Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
  • Three HDMI inputs
  • Allows for simultaneous digital connections of high-definition sources.
