4P-B55EJ2U

55" Class Commercial TV

Model: 4P-B55EJ2U

Take your message to the next level with a Sharp AQUOS® Commercial TV display. The Sharp 4P-B55EJ2U - 55" Class display conveys your message with the true-to-life precision of 4K Ultra-HD resolution. Built-in tuner support, wireless casting support and business-friendly features are packed into an elegantly slender frame. Regardless of your industry, when you need to inform, entertain or engage an audience the 4P-B55EJ2U delivers your message with superb picture quality.

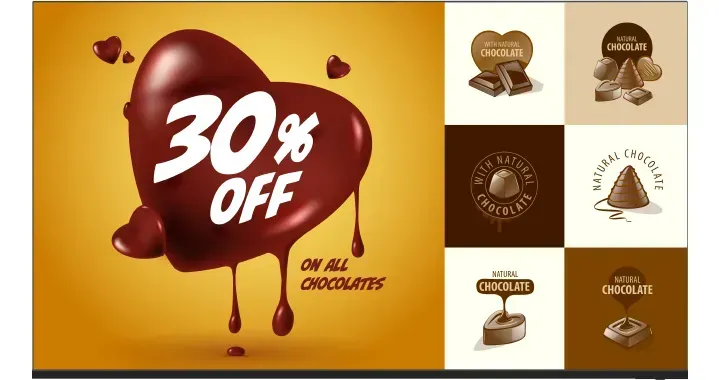

*Screen image simulated.

Download Brochure
Chocolate promotion: 30% off. Heart-shaped chocolate with dripping design, set against an orange background, with chocolate logo samples.

Features

  • 55" Class (54.6" diagonal) Screen Size
  • Brilliant 4K-Ultra High Definition (3840 x 2160) LCD Display
  • Streamlined Design using Direct LED Backlighting
  • HDR10
  • Wireless casting capability
  • Built-in 8W per Channel Stereo Audio System
  • RS-232C control capability
  • Built-in Digital Tuner
  • 3-Year Limited Warranty
  • 300 cd/m2 Brightness
  • TAA compliant

Product Specifications

Display
Panel Technology TFT LCD
Viewable Image Size 55"
Aspect Ratio 16:9
Screen Resolution 3840x2160
Supported Resolutions 640 x 480, 720 x 400, 800 x 600, 1024 x768, 1360 x 768, 1280 x 1024, 1400 x 1050, 1280 x 720p, 1920 x 1080, 1920 x 1080i, 1920 x 1080p, 3840 x 2160, 3840 x 2160p, 640 x 480p, 720 x 480p, 720 x 576p, 720(1440) x 480i, 720(1440) x 576i
Pixel Pitch 0.315 mm
Pixels Per Inch 89 PPI
Backlight Type LED Direct-lit
Brightness (typical) 300 cd/m2
Contrast Ratio (typical) 1300:1
Viewing Angle (typical) 176°/176° (CR≧10)
Response Time (Gray to Gray) 6 ms
Refresh Rate 60Hz
Active Screen Area 48.1" x 27.1 " / 1,222 x 689
Orientation Landscape
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 31.5kHz - 135.0kHz
Vertical 24Hz-75Hz
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
External Control LAN In/Out and RS232 In - Full external control capabilities
Analog Mini AV in x 1
Digital HDMI (2.0 x 3 with HDCP 2.2)
External Control RS-232C, LAN (100Mb), USB Card (Media Player)
Data USB 2.0 (Media Player) x 2
Audio 3.5mm-diameter stereo mini jack x 1
External Control D-sub 9 pin x 1
On 130
ECO Mode Standby 0.5W
Bezel Width (Left/Right, Top/Bottom) 0.12 in./0.12 in., 0.12 in./0.75 in. : 3 mm/3 mm, 3 mm/19 mm
Dimensions(WxHxD) 48.3 x 28 x 2.9 in.
Shipping (WxHxD) 53" x 31.73" x 4.88"
Net Weight 28.3 lbs. / 12.8 kg.
Shipping Weight 35.27 lbs
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 20% to 80% (no condensation)

Limited Warranty (Parts & Labor)

3 years

More Information

Additional Features

  • 4K Resolution
  • 4K Ready
  • 60 Hz LED Frame Rate
  • Built-In Closed Captioning
  • Built-In NTSC/ATSC analog/digital tuner
  • Built-In Speakers
  • Integrated MultiMedia Player
  • LED Backlight
  • Power Management
  • Programmable Timer
  • Sleep Timer
  • Wired Network Connection
  • RS-232C and LAN control capability
  • TAA Compliant
  • Contrast Ratio (1300:1)

Optical

Display Technology TFT LCD

Accessories

Included:

  • Remote control unit :1
  • Remote control battery ("AAA"):2
  • Setup Guide: 1
  • RS232C conversion cable (3.5mm-diameter mini stereo jack): 1
  • Stand unit (Stand base (L/R), Screws (x4) :1

Optional:

  • Shuttle PN-SPCi5W10C8GB signage PC

Notes

Specifications are subject to change without prior notice

  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • V-Chip Function
  • Also known as parental control, allows users to block programs based on rating category.
  • Three HDMI inputs
  • Allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
  • Built-In NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Allows for high-definition broadcast capabilities.
  • 4K Resolution
  • Provides the ultimate in screen clarity.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.


  • Integrated MultiMedia Player
  • Allows the ability to play video, audio or image files directly off USB.
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Sleep Timer (Large Format Displays)
  • Countdown timer can be set to automatically turn off the display.
  • Built-In Closed Captioning
  • Enables decoding and display of text information from a video.
  • LED Backlight
  • Provides for industry-leading low power consumption and less hazardous materials.
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
