M551-2
55" Ultra High Definition Professional Display
Model: M551-2
Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget. Share your message, your way.

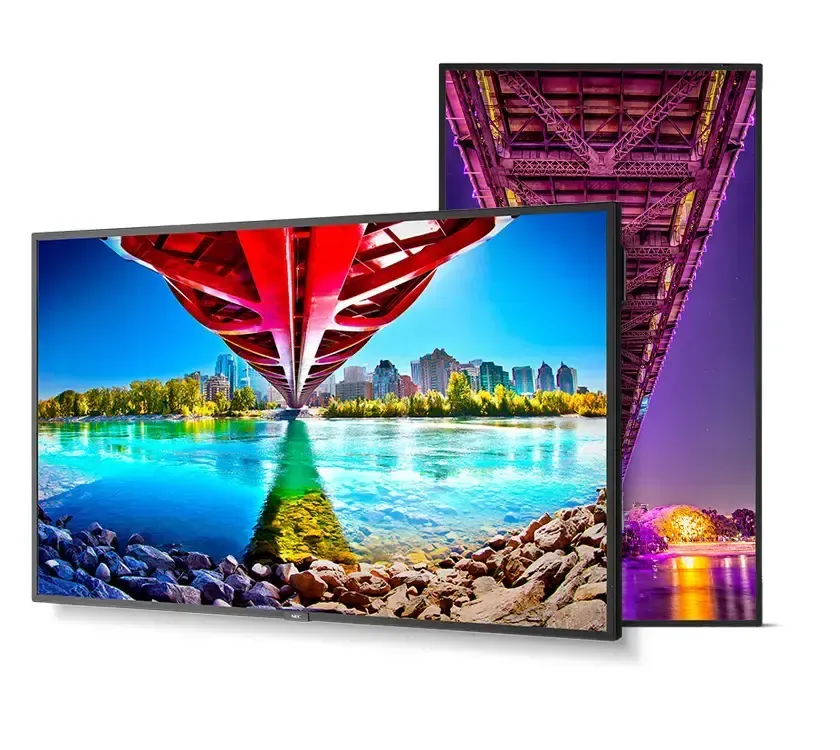

*Screen image simulated.
Features
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- Raspberry Pi Compute Module 4 allows for future proof expansion directly into the display
- 500 cd/m² brightness and HDR compatibility will capture the attention of audience in almost any situation
- 24/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated Media Player allows for audio, video or image playback via USB
- Energy Star 8.0 Certified Product
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Product Specifications
| Display | |
|---|---|
| Panel Technology | VA |
| Viewable Image Size | 55" |
| Aspect Ratio | 16:9 |
| Screen Resolution | 3840x2160 |
| Supported Resolutions | DisplayPort: V1.2 (HDCP 1.3/2.2)VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz)HDMI (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)),4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)) |
| Pixel Pitch | 0.32 mm |
| Pixels Per Inch | 81 @ native resolution |
| Backlight Type | LED Edge-lit |
| Brightness (typical) | 500 cd/m2 |
| Contrast Ratio (typical) | ≥8000:1 (Out of the box conditions, local dimming ON) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 47.2 x 26.8 in. / 1209.6 x 680.4mm |
| Orientation | Landscape/Portrait |
| Dimming Capability | Local Dimming Capable |
| Displayable Colors | More than 1.07 billion (8-bit+FRC) |
| Color Temperature (Max) (°K) | 10000K |
| Color Temperature (Min) (°K) | 2600K |
| Gamma (Typical) | Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3 |
Synchronization Range
| Horizontal (Digital) | 26.0 - 135.0kHz |
| Vertical (Digital) | 23.0 - 86.0Hz |
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| Video | Digital TMDS / DisplayPort |
| External Control | LAN and RS232 In - Full external control capabilities |
| Digital | LAN and RS232 In - Full external control capabilities |
| Audio | 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 |
| External Control | RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) |
| Data | USB 2.0 (Media Player) |
| Audio | 3.5mm Mini-Jack |
| On | 120W |
| ECO Mode Standby | <0.5W |
| Network Standby | 0.5W |
| Power Consumption (max) | 120W (Max Brightness), 265W (Brightness Max, SDM Max, Volume Max) |
| Power Savings Mode | 2 W |
| Bezel Width (Left/Right, Top/Bottom) | 0.55 in./0.55 in., 0.55 in./0.55 in. : 13.9 mm/13.9 mm, 13.9 mm/13.9 mm |
| Dimensions (without stand) (WxHxD) | 48.9 x 28.1 x 2.5 in. / 1241.8 x 712.6 x 62.6 mm |
| Shipping (WxHxD) | 56.3 x 36.2 x 9.8 in. / 1430.0 x 920.0 x 250.0mm |
| Net Weight (without stand) | 41.4 lbs. / 18.8 kg. |
| Shipping Weight | 65.0 lbs. / 29.5kg |
| VESA Hole Configuration | 400 x 400mm (M6 x 4-hole) |
| Operating Humidity | 20% to 80% |
| Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4 - 140°F / -20 – 60°C |
| Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m |
Environmental Compliance
| ENERGYSTAR | Energy Star 8.0 |
Limited Warranty (Parts & Labor)
3 years Advanced Exchange
Additional Features
- Accepts Intel(R) SDM-S or SDM-L
- AMX Support
- ARC Support through HDMI
- Automated Email Alert Function
- Consumer Electronics Control (CEC)
- Crestron Roomview Support (FW Update)
- Display Browser Control
- Display Wall Calibrator Compatible
- Energy Star 8.0
- Full Input Detect Functionality
- HDR Support (PQ, HLG, HDR10)
- Integrated Temperature sensor
- Integrated USB Media Player
- Key Guide
- Local Dimming
- NaViSet Administrator 2 Compatible
- Off Timer
- OSD Rotation for Portrait Orientation
- PJ Link Support
- Power USB Port (5V/2A)
- Programmable Gamma
- Raspberry Pi Compute Module 4 Compatible
- Real Time Clock
- Removeable Logo Ornament
- Scheduler Function
- SNMP
- TileMatrix
- Vacation Switch
Accessories
Included:
- 3m Power cord
- 2.0m HDMI cable
- Batteries
- Wireless remote control
Optional:
- IR/Human Sensor Accessory (KT-RC3)
- SDM Tuner (DS1-TM01)
- Table Top Stand (ST-401)
- Table Top Stand (ST-43M)
- Wall Mount (WMK-3298T)
Ships with:
- 2.0m HDMI cable
- 3m Power cord
- Batteries
- Setup Guide
- Wireless remote control
Cooling Method
Integrated Temperature Sensor and Cooling Fan for SDM
- 4K Resolution
- Provides the ultimate in screen clarity.
- Round-The-Clock Scheduler
- Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
- Human Sensor (Large Format Displays)
- Upon sending movement, allows for automatic adjustment to certain settings and features in the display which can lead to targeted messaging for dual-purpose display in digital signage or presentation applications.
- Integrated MultiMedia Player
- Allows the ability to play video, audio or image files directly off USB.
- Built-In Speakers
- Enhance the visual experience with superior sound.
- Accepts Intel® Smart Display Modules Large or Small
- Accepts Intel® Smart Display Modules Large or Small through clever mechanical and electrical design allowing for sleek all-in-one intelligence and interoperability in a small form factor setting.
- Raspberry Pi Compute Module Compatible
- The Raspberry Pi Compute Module 4 is the smartest combination of computing power with professional yet cost-effective Signage displays for use in retail environments, passenger information, quick service menu boards and so many more applications.
- NaViSet Administrator 2™
- Control, monitor and manage your display and projector settings in an all-in-one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.
3 Year Coverage
- ADVEXMN-3Y-12: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
- ONSTEMN-3Y-12: Onsite Over Night (Next Business Day) Service+ 3 Years
4 Year Coverage
- ADVEXMN-4Y-12: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
- EXTWRMN-4Y-12: Extended Warranty 4 Years
- ONSTEMN-4Y-12: Onsite Over Night (Next Business Day) Extended Warranty 4 Years
5 Year Coverage
- ADVEXMN-5Y-12: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
- EXTWRMN-5Y-12: Extended Warranty 5 Years
- ONSTEMN-5Y-12: Onsite Over Night (Next Business Day) Extended Warranty 5 Years
Note: Extended warranties are not valid in personal residences.
