MA431-IR

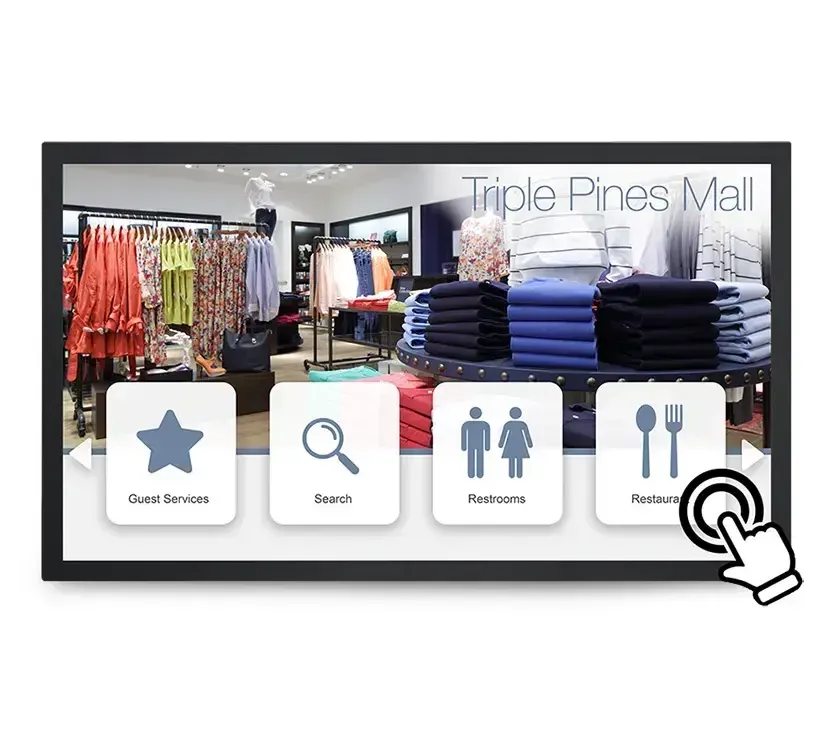

43" Wide Color Gamut Ultra High Definition Professional Display with Pre-installed IR Touch
Model: MA431-IR
Create pixel perfect imagery with the high-end panel quality of the new fully commercial NEC MA Series large format displays with clear tempered 10-point IR touch pre-installed. By implementing premium features and focusing on creating impressionable digital signage experiences, the MA series gives customers an elite display option with its one-of-a-kind wide color gamut commercial panel coupled with the proprietary SpectraView Engine capabilities while also allowing customers the modularity possibilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC MA series boasts 500 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, museums and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
Features
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Wide Color Gamut panels allow for a broader range of viewable colors compared to traditional commercial panels
- Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support
- 500 cd/m² brightness and HDR compatibility will capture the attention of audience in almost any situation
- Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Product Specifications
| Display | |
|---|---|
| Panel Technology | U-IPS |
| Viewable Image Size | 43" |
| Aspect Ratio | 16:9 |
| Screen Resolution | 3840x2160 |
| Supported Resolutions | DIsplayPort: V1.4 - Up to 7680 x 4320 (30Hz - compressed image)HDMI: V2.0 - Up to 4096 x 2160 (60Hz) |
| Pixel Pitch | 0.25 mm |
| Pixels Per Inch | 102 @ native resolutionesolution |
| Backlight Type | LED Edge-lit |
| Brightness (typical) | 500 cd/m2 |
| Contrast Ratio (typical) | ≥8000:1 (Out of the box conditions, local dimming ON) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 47.2 x 26.8 in. / 1209.6 x 680.4mm |
| Orientation | Landscape/Portrait |
| Dimming Capability | Local Dimming Capable |
| Displayable Colors | More than 1.08 billion (10-bit) |
| Color Temperature (Max) (°K) | 15000K |
| Color Temperature (Min) (°K) | 3000K |
| Gamma (Typical) | Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable |
Synchronization Range
| Horizontal (Digital) | 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort) |
| Vertical (Digital) | 23.0 - 76.0Hz |
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| Video | Digital TMDS / DisplayPort |
| External Control | LAN In/Out and RS232 In - Full external control capabilities |
| Digital | HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP) |
| Audio | DisplayPort Audio x2, HDMI Audio x2 |
| External Control | RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) |
| Data | USB-A (Hub/0.5A), USB-B (Control/Software), USB-A (Service/2A) |
| Digital | HDMI (2.0), DisplayPort (1.4) |
| Audio | 3.5mm Mini-Jack |
| External Control | LAN (100Mb) |
| On | 70W |
| ECO Mode Standby | <0.5W |
| Network Standby | 0.5W |
| Power Consumption (max) | 85W (Max Brightness) / 235W (Brightness Max, SDM Max, Volume Max) |
| Power Savings Mode | 2 W |
| Power Requirements | 2.6A @ 100V, 1.1A @ 240V |
| Bezel Width (Left/Right, Top/Bottom) | 39.47 x 23.62 x 3.68 in. / 1002.54 x 599.99 x 93.47 mm |
| Dimensions (without stand) (WxHxD) | 44.1 x 27.6 x 8.0 in. / 1120.0 x 700.0 x 203.0mm |
| Shipping (WxHxD) | 82.3 x 48.2 x 8.9 in. / 2090.0 x 1225.0 x 225.0mm |
| Net Weight (without stand) | 58.8 lbs. / 26.73 kg. |
| Shipping Weight | 69.8 lbs / 31.66 |
| VESA Hole Configuration | 300 x 300mm (M6 x 4-hole) |
| Operating Humidity | 20% to 80% |
| Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4 - 140°F / -20 – 60°C |
| Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m |
Environmental Compliance
| ENERGYSTAR | Energy Star 8.0 |
Limited Warranty (Parts & Labor)
3 years Advanced Exchange
Additional Features
- 6-axis Color Trim
- Accepts Intel(R) SDM-S or SDM-L
- AMX Support
- ARC Support through HDMI
- Automated Email Alert Function
- Cisco Webex Compatible
- Color Vision Emulation
- Consumer Electronics Control (CEC)
- Crestron Roomview Support (FW Update)
- Display Browser Control
- Display Wall Calibrator Compatible
- Dual Diasy Chain Capabilities
- Energy Star 8.0
- Full Input Detect Functionality
- HDR Support (PQ, HLG, HDR10)
- Integrated Temperature Sensors and Active Cooling Fans
- Key Guide
- Local Dimming
- Multi Picture Mode (Up to 4 Simultaneous Images)
- NaViSet Administrator 2 Compatible
- Off Timer
- OSD Rotation for Portrait Orientation
- Pivot Feature through G-Sensor
- PJ Link Support
- Power USB Port (5V/2A)
- Programmable Gamma
- Raspberry Pi Compute Module 4 Compatible
- Real Time Clock
- Removeable Logo Ornament
- Scheduler Function
- SNMP
- SpectraView Engine Technology
- TileMatrix
- Uniformity Adjustment
- Vacation Switch
- Wide Color Gamut Panel
Accessories
Included:
- 2.0m HDMI cable
- 3m Power cord
- Batteries
- Wireless remote control
Optional:
- IR/Human Sensor Accessory (KT-RC3)
- SDM Tuner (DS1-TM01)
- Table Top Stand (ST-43M)
- Wall Mount (WMK-3298T)
Ships with:
- 2.0m HDMI cable
- 3m Power cord
- Batteries
- Setup Guide
- Wireless remote control
Cooling Method
Multiple integrated temperature sensors and fans for active cooling and real time temperature measuring to ensure that the display stays cool for extended runtimes
- Accepts Intel® Smart Display Modules Large or Small
- Accepts Intel® Smart Display Modules Large or Small through clever mechanical and electrical design allowing for sleek all-in-one intelligence and interoperability in a small form factor setting.
- Raspberry Pi Compute Module Compatible
- The Raspberry Pi Compute Module 4 is the smartest combination of computing power with professional yet cost-effective Signage displays for use in retail environments, passenger information, quick service menu boards and so many more applications.
- SpectraView Engine Technology
- Proprietary integrated color management system.
- 4K Resolution
- Provides the ultimate in screen clarity.
- Multi Picture Mode
- Simultaneously showcase up to 4 images on the display without the addition of third-party hardware or software processing
- NaViSet Administrator 2™
- Control, monitor and manage your display and projector settings in an all-in-one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.
3 Year Coverage
- ADVEXMN-3Y-13: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
- ONSTEMN-3Y-13: Onsite Over Night (Next Business Day) Service+ 3 Years
4 Year Coverage
- ADVEXMN-4Y-13: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
- EXTWRMN-4Y-13: Extended Warranty 4 Years
- ONSTEMN-4Y-13: Onsite Over Night (Next Business Day) Extended Warranty 4 Years
5 Year Coverage
- ADVEXMN-5Y-13: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
- EXTWRMN-5Y-13: Extended Warranty 5 Years
- ONSTEMN-5Y-13: Onsite Over Night (Next Business Day) Extended Warranty 5 Years
Note: Extended warranties are not valid in personal residences.
