PN-E329

32" High Definition Commercial Display

Model: PN-E329

Enhance your meeting and conferencing performance with excellent FHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the 32" Sharp PN-E329 meets the demands of today’s meeting environments. An integrated MediaPlayer supports native FHD resolution for content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. With this Sharp display, presenters will feel confident during meetings while retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI or USB-C sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

Features

  • 1080P FHD native resolution allows for great visual output!
  • Built-in, integrated 5W speakers enhance the experience with excellent sound
  • Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
  • Tilt back and forth installation (-20°～20°) to install it at desired angle

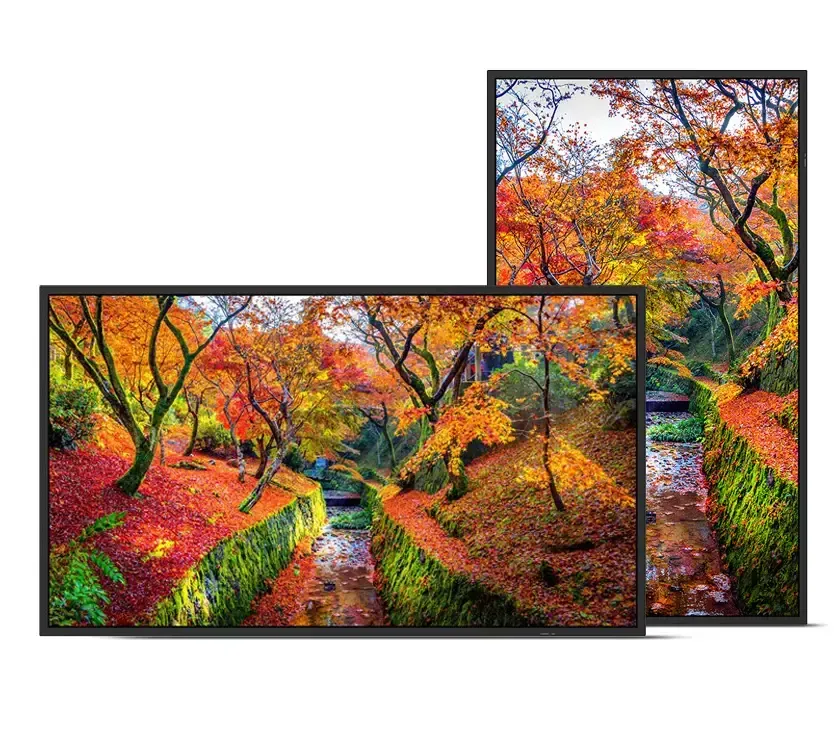

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off timer maintains power schedules
  • Integrated Media Player allows for audio, video or image playback via USB
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • USB Type-C port for audio/video input
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Product Specifications

Display
Panel Technology ADS
Display Technology LCD w/ LED backlight
Viewable Image Size 32"
Aspect Ratio 16:9
Screen Resolution 1920x1080
Supported Resolutions HDMI: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.4, USB-C: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.3
Pixel Pitch 0.36 mm
Pixels Per Inch 70 PPI
Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray) 8ms
Refresh Rate 60Hz
Active Screen Area 27.50 x 15.47 in / 698.4 x 392.9mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million

Synchronization Range

Horizontal (Digital) 15.0 - 136.0kHz
Vertical (Digital) 24.0Hz - 75.0Hz
SD/HD Video Signal Compatibility USB-C x 1
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
Digital HDMI (2.0 x 2 with HDCP 2.2), USB-C (x1 with)
Audio Stereo Mini Jack x1, HDMI Audio x2, USB-C Audio x1
External Control RS-232C, LAN (100Mb), IR Remote
Data USB 2.0 (Media Player), USB-C (Power)
Audio Stereo Mini-Jack 3.5mm
On 43W
ECO Mode Standby 0.5W
Network Standby 2W
Power Consumption (max) 70W
Input Current 0.8A @ 100V / 0.4A @ 240V
Power Requirements 100-240V AC, 50/60 Hz
Dimensions (without stand) (WxHxD) 28.5 x 16.46 x 2.32 in. / 724 x 418 x 59 mm
Shipping (WxHxD) 32.4 x 21.81 x 4.69 in. / 824 x 554 x 119 mm
Net Weight (without stand) 15.43 lbs. / 4.7 kg.
Shipping Weight 15.43 lbs / 7kg
VESA Hole Configuration 200 x 200mm (M6)
Operating Temperature 32-104°F / 0-40°C
Operating Humidity 20% to 80%
Operating Altitude 16,404 ft. / 5,000m
Storage Temperature -4 - 140°F / -20 – 60°C
Storage Humidity 10-80%
Storage Altitude 16,404 ft. / 5,000m

Limited Warranty (Parts & Labor)

3 years

Additional Features

  • Advanced Video/Audio Settings
  • Tile Matrix support
  • CEC Communication
  • Integrated USB Media Player
  • NaViSet Administrator 2 Compatible
  • Power USB (5V/3A)
  • USB-C Port for Audio/Video
  • Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom)
  • Variable Sound Modes (Standard/Music/Movie/Custom)

Accessories

Included:

  • Batteries
  • Power Cord
  • Wireless remote control
  • Cord clamp

Ships with:

  • Batteries
  • Power Cord
  • Setup Manual
  • Wireless Remote Control
  • Cord clamp
  • Built-In Speakers
    Enhance the visual experience with superior sound.
  • Integrated MultiMedia Player
    Allows the ability to play video, audio or image files directly off of USB drives.
  • Integrated MultiMedia Player (USB or microSD card)
    Allows the ability to play video, audio or image files directly off USB or through microSD card. There is also the ability to copy from USB to microSD card then lock down the microSD card for security purposes. Even update content over the network!
  • Landscape/Portrait Capable
    Allows for distortion-free display of content in various orientations, creating new application opportunities.
  • NaViSet Administrator 2™
    Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.
  • Portrait Mode
    Ability to install a projector in its side to create a 10:16 portrait image
  • Power Management
  • Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • RS-232C and LAN control capability
  • Permits flexible remote-control capabilities from connected devices.
  • Sleep Timer
  • Countdown timer can be set to automatically turn off the display.
  • TileMatrix™
  • Allows users to customize a video wall configuration using advanced On Screen Display controls.
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Wired Network Connection
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).


3 Year Coverage

  • ADVEXMN-3Y-7: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
  • ONSTEMN-3Y-7: Onsite Over Night (Next Business Day) Service+ 3 Years

4 Year Coverage

  • ADVEXMN-4Y-7: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
  • EXTWRMN-4Y-7: Extended Warranty 4 Years
  • ONSTEMN-4Y-7: Onsite Over Night (Next Business Day) Extended Warranty 4 Years

5 Year Coverage

  • ADVEXMN-5Y-7: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
  • EXTWRMN-5Y-7: Extended Warranty 5 Years
  • ONSTEMN-5Y-7: Onsite Over Night (Next Business Day) Extended Warranty 5 Years

Note: Extended warranties are not valid in personal residences.
