PN-E509

43" Ultra High Definition Commercial Display

Model: PN-E509

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the 50" Sharp PN-E509 meets the demands of today’s meeting environments. An integrated MediaPlayer supports native UHD resolution for content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. With this Sharp display, presenters will feel confident during meetings while retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI or USB-C sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

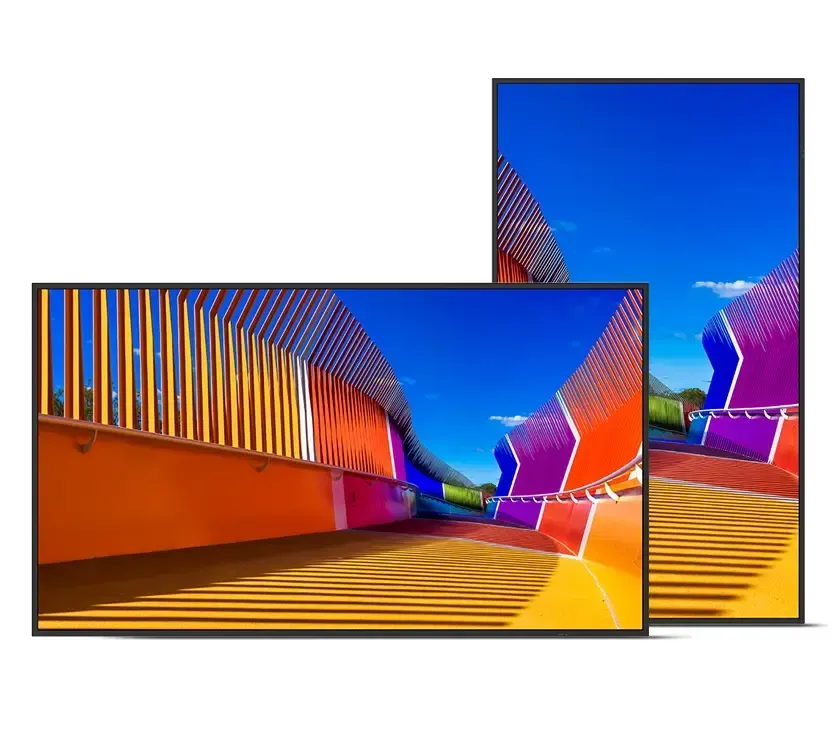

Two digital displays showing colorful bridge scenery; one horizontal, one vertical.

Features

  • 4K UHD native resolution  allows for high end visual acuity!
  • Built-in, integrated 10W speakers enhance the experience with superior sound
  • Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
  • Tilt back and forth installation (-20°～20°) to install it at desired angle


  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off timer maintains power schedules
  • Integrated Media Player allows for audio, video or image playback via USB


  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • USB Type-C port for audio/video input

Product Specifications

Display
Panel Technology VA
Display Technology LCD w/ LED backlight
Viewable Image Size 50"
Aspect Ratio 16:9
Screen Resolution 3840X2160
Supported Resolutions HDMI: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.4, USB-C: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.3
Pixel Pitch 0.29 mm
Pixels Per Inch 89 PPI
Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray) 8ms
Refresh Rate 60Hz
Active Screen Area 43.14 x 24.26 in / 1095.8 x 616.4 mm
Orientation Landscape/Portrait
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Digital) 15.0 - 136.0kHz
Vertical (Digital) 24.0Hz - 75.0Hz

Signal Compatibility

SD/HD Video Signal Compatibility USB-C x 1
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes

Connectivity - Input Terminals

Digital HDMI (2.0 x 3 with HDCP 2.2), USB-C (x1 with)
Audio Stereo Mini Jack x1, HDMI Audio x2, USB-C Audio x1
External Control RS-232C, LAN (100Mb), IR Remote
Data USB 2.0 (Media Player), USB-C (Power)

Connectivity - Output Terminals

Audio Stereo Mini-Jack 3.5mm

Power Consumption (typical)

On 99W
ECO Mode Standby 0.5W
Network Standby 2W
Power Consumption (max) 135W
Input Current 1.6A @ 100V / 0.6A @ 240V
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (without stand) (WxHxD) 44.09 x 25.24 x 2.36 in. / 1120 x 641 x 59.9mm
Shipping (WxHxD) 49.33 x 29.96 x 5.04 in. / 1253 x 761 x 128 mm
Net Weight (without stand) 20.28 lbs. / 9.2kg
Shipping Weight 28.66 lbs / 13 kg
VESA Hole Configuration 200 x 200mm (M6)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C
Operating Humidity 20% to 80%
Operating Altitude 16,404 ft. / 5,000m
Storage Temperature -4 - 140°F / -20 – 60°C
Storage Humidity 10-80%
Storage Altitude 16,404 ft. / 5,000m

Limited Warranty (Parts & Labor)

3 years

More Information
  • Advanced Video/Audio Settings
  • Tile Matrix support
  • CEC Communication
  • Integrated USB Media Player
  • NaViSet Administrator 2 Compatible
  • Power USB (5V/3A)
  • USB-C Port for Audio/Video
  • Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom)
  • Variable Sound Modes (Standard/Music/Movie/Custom)

Included:

  • Batteries
  • Power Cord
  • Wireless remote control
  • Cord clamp

Optional:

  • Table Top Stand (ST-43M)
  • Wall Mount (WMK-3298T)
  • Batteries
  • Power Cord
  • Setup Manual
  • Wireless Remote Control
  • Cord clamp
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • 4K Resolution
  • Provides the ultimate in screen clarity.

3 Year Coverage

  • ADVEXMN-3Y-8: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
  • ONSTEMN-3Y-8: Onsite Over Night (Next Business Day) Service+ 3 Years

4 Year Coverage

  • ADVEXMN-4Y-8: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
  • EXTWRMN-4Y-8: Extended Warranty 4 Years
  • ONSTEMN-4Y-8: Onsite Over Night (Next Business Day) Extended Warranty 4 Years

5 Year Coverage

  • ADVEXMN-5Y-8: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
  • EXTWRMN-5Y-8: Extended Warranty 5 Years
  • ONSTEMN-5Y-8: Onsite Over Night (Next Business Day) Extended Warranty 5 Years

Note: Extended warranties are not valid in personal residences.
