PN-E869

86" Ultra High Definition Commercial Display

Model:  PN-E869

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the 86" Sharp PN-E869 meets the demands of today’s meeting environments. An integrated MediaPlayer supports native UHD resolution for content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. With this Sharp display, presenters will feel confident during meetings while retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI or USB-C sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

Download Brochure

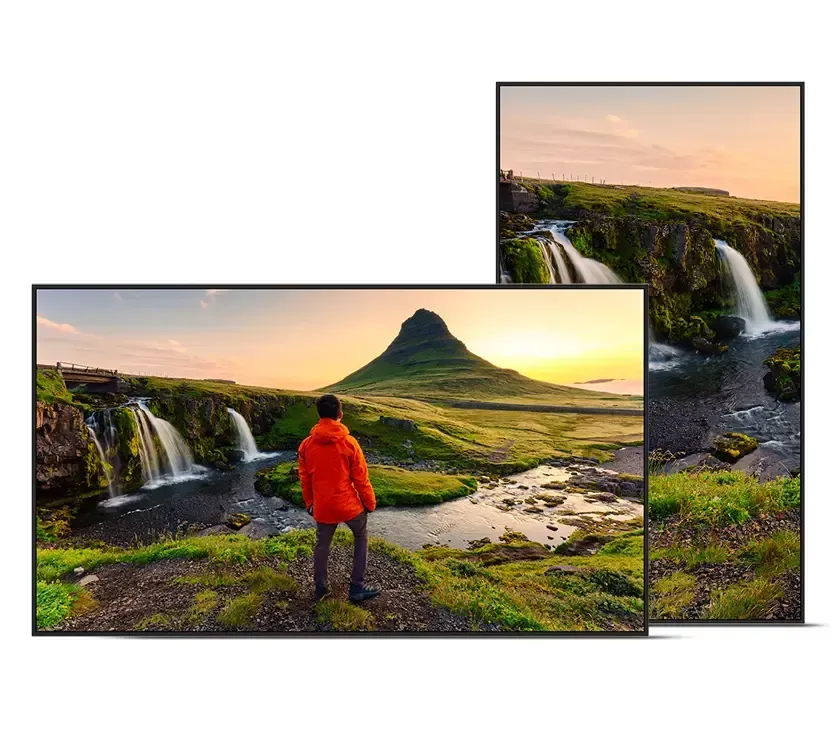

Person in orange jacket standing before waterfall; screens displaying scenic landscape, one vertical.

Features

  • 4K UHD native resolution  allows for high end visual acuity!
  • Built-in, integrated 10W speakers enhance the experience with superior sound
  • Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
  • Tilt back and forth installation (-20°～20°) to install it at desired angle
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off timer maintains power schedules
  • Integrated Media Player allows for audio, video or image playback via USB


  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • USB Type-C port for audio/video input
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Product Specifications

Display
Panel Technology ADS
Display Technology LCD w/ LED backlight
Viewable Image Size 86"
Aspect Ratio 16:9
Screen Resolution 3840X2160
Supported Resolutions HDMI: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.4, USB-C: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.3
Pixel Pitch 0.49 mm
Pixels Per Inch 51 PPI
Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (Gray to Gray) 8ms
Refresh Rate 60Hz
Active Screen Area 74.6 x 41.97 in / 1895 x 1066 mm
Orientation Landscape/Portrait
Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Digital) 15.0 - 136.0kHz
Vertical (Digital) 24.0Hz - 75.0Hz

Signal Compatibility

SD/HD Video Signal Compatibility USB-C x 1
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes

Connectivity - INput Terminals

Digital HDMI (2.0 x 3 with HDCP 2.2), USB-C (x1 with)
Audio Stereo Mini Jack x1, HDMI Audio x2, USB-C Audio x1
External Control RS-232C, LAN (100Mb), IR Remote
Data USB 2.0 (Media Player), USB-C (Power)

Connectivity - Output Terminals

Audio Stereo Mini-Jack 3.5mm

Power Consumption (typical)

On 245W
ECO Mode Standby 0.5W
Network Standby 2W
Power Consumption (max) 320W
Input Current 3.6A @ 100V / 1.4A @ 240V
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (without stand) (WxHxD) 75.87 x 43.26 x 2.36 in. / 1927 x 1098.6 x 60.0mm
Shipping (WxHxD) 81.89 x 49.21 x 8.86 in. / 2080 x 1250 x 225mm
Net Weight (without stand) 71.65 lbs. / 32.5kg
Shipping Weight 97.00 lbs / 44 kg
VESA Hole Configuration 600 x 400mm (M8)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C
Operating Humidity 20% to 80%
Operating Altitude 16,404 ft. / 5,000m
Storage Temperature -4 - 140°F / -20 – 60°C
Storage Humidity 10-80%
Storage Altitude 16,404 ft. / 5,000m

Limited Warranty (Parts & Labor)

3 years

More Information
  • Advanced Video/Audio Settings
  • Tile Matrix support
  • CEC Communication
  • Integrated USB Media Player
  • NaViSet Administrator 2 Compatible
  • Power USB (5V/3A)
  • USB-C Port for Audio/Video
  • Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom)
  • Variable Sound Modes (Standard/Music/Movie/Custom)

Included:

  • Batteries
  • Power Cord
  • Wireless remote control
  • Cord clamp

Ships with:

  • Batteries
  • Power Cord
  • Setup Manual
  • Wireless Remote Control
  • Cord clamp
  • USB Viewer
  • Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
  • Round-The-Clock Scheduler
  • Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
  • Built-In Speakers
  • Enhance the visual experience with superior sound.
  • 4K Resolution
  • Provides the ultimate in screen clarity.

3 Year Coverage

  • ADVEXMX-3Y-12: Advanced Exchange 2 Day Freight Service+
  • ONSTEMX-3Y-12: Onsite 2 Day Freight Service+

4 Year Coverage

  • ADVEXMX-4Y-12: Advanced Exchange 2 Day Freight Extended Warranty 4 Years
  • EXTWRMX-4Y-12: Extended Warranty 4 Years
  • ONSTEMX-4Y-12: Onsite 2 Day Freight Extended Warranty 4 Years

5 Year Coverage

  • ADVEXMX-5Y-12: Advanced Exchange 2 Day Freight Extended Warranty 5 Years
  • EXTWRMX-5Y-12: Extended Warranty 5 Years
  • ONSTEMX-5Y-12: Onsite 2 Day Freight Extended Warranty 5 Years

Note: Extended warranties are not valid in personal residences.
