PN-M322
32" Professional Grade Display
Model:
PN-M322
Create pixel-perfect imagery with the high-end panel quality of the fully professional Sharp PN-M322 large format display. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. This M series display can support both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The Sharp PN-M322 boasts 450 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.
Features

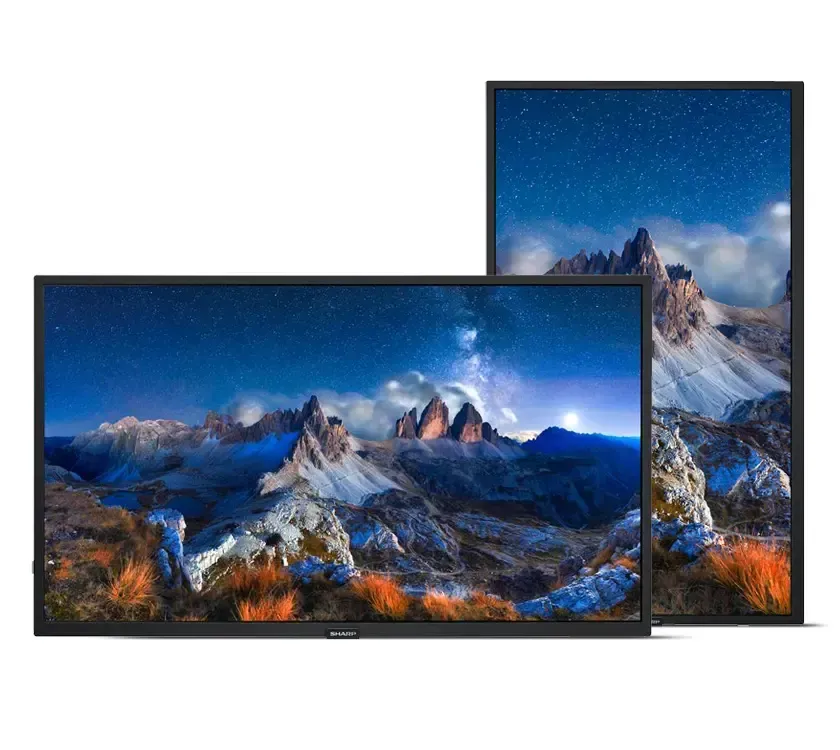

- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- 450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- Full 3 year commercial warranty to allow for peace of mind and protection of this investment
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated Media Player allows for audio, video or image playback via USB
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Product Specifications
| Display | |
|---|---|
| Panel Technology | VA |
| Viewable Image Size | 32" |
| Aspect Ratio | 16:9 |
| Screen Resolution | 1920x1080 |
| Pixel Pitch | 0.364 mm |
| Pixels Per Inch | 68 @ native resolution |
| Backlight Type | LED |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 4000:1 |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 698.4 x 392.9mm |
| Displayable Colors | More than 16.7 million |
| Gamma (Typical) | Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3 |
Synchronization Range
| Horizontal (Digital) | HDMI (TMDS): Horizontal Frequency: ~15kHz - ~136.0kHz / DisplayPort: Horizontal Frequency: ~15kHz - ~136.0kHz |
| Horizontal (Analog) | VGA (RGB): Horizontal Frequency: ~15kHz - ~81.0kHz |
| Vertical (Digital) | HDMI (TMDS): Vertical Frequency: ~23.0Hz - ~76.0Hz / DisplayPort: Vertical Frequency: ~23.0Hz - ~76.0Hz |
| Vertical (Analog) | VGA (RGB): Vertical Frequency: ~49Hz - ~76.0Hz |
Signal Compatibility
| External Control | LAN and RS232 In - Full external control capabilities |
| Sync | Digital TMDS / DisplayPort |
Connectivity - Input Terminals
| Digital | DisplayPort, HDMI x2 RGB1(digital): DisplayPort RGB2(digital): HDMI1 RGB3(digital): HDMI2 |
| Audio | 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 Audio 1: DisplayPort Audio 2: HDMI1 Audio 3: HDMI2 |
| External Control | LAN and RS232 In - Full external control capabilities |
Connectivity - Output Terminals
| Audio Out | Stereo Mini Jack |
Power Consumption (typical)
| On | 40W |
| Power Savings Mode | 0.5W |
Physical Specifications
| Bezel Width (Left/Right, Top/Bottom) | 0.46 in./0.47 in., 0.47 in./0.68 in. : 11.8 mm/11.9 mm, 11.9 mm/17.2 mm |
| Dimensions (without stand) (WxHxD) | 28.6 x 16.75 x 2.62 in. / 726.5 x 425.4 x 66.5 mm |
| Shipping (WxHxD) | 34.3 x 20.8 x 6.3 in. / 870.0 x 527.0 x 160.0 |
| Net Weight (without stand) | 13.9 lbs. / 6.3 kg. |
| Shipping Weight | 21.6lbs. / 9.8kg |
| VESA Hole Configuration | 100 x 100mm, 200 x 200mm (off-center) |
Environmental Conditions
| Operating Temperature | 32-104°F / 0-40°C |
| Operating Humidity | 20% to 80% |
| Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4 - 140°F / -20 – 60°C |
| Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m |
Additional Features
- AMX Support
- ARC Support through HDMI
- Automated Email Alert Function
- Consumer Electronics Control (CEC) Crestron Roomview Support
- Display Browser Control
- Full Input Detect Functionality
- HDR Support (PQ, HLG, HDR10)
- Integrated Temperature sensor
- Integrated USB Media Player
- Key Guide
- NaViSet Administrator 2 Compatible
- Off Timer
- OSD Rotation for Portrait Orientation
- PJ Link Support
- Power USB Port (5V/2A)
- Programmable Gamma
- Real Time Clock
- Removeable Logo Ornament
- Scheduler Function
- SNMP
- TileMatrix
- Vacation Switch
ACCESSORIES
Included:
- 2.0m HDMI Cable
- 3.0m Power Cable
- AAA Batteries
- IR Remote Control
Optional:
- Table Top Stand (ST32M)
Ships With:
- 2.0m HDMI Cable
- 3.0m Power Cable
- AAA Batteries
- IR Remote Control
- Integrated MultiMedia Player
- Allows the ability to play video, audio or image files directly off USB.
3 Year Coverage
- ADVEXMN-3Y-9: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
- ONSTEMN-3Y-9: Onsite Over Night (Next Business Day) Service+ 3 Years
4 Year Coverage
- ADVEXMN-4Y-9: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
- EXTWRMN-4Y-9: Extended Warranty 4 Years
- ONSTEMN-4Y-9: Onsite Over Night (Next Business Day) Extended Warranty 4 Years
5 Year Coverage
- ADVEXMN-5Y-9: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
- EXTWRMN-5Y-9: Extended Warranty 5 Years
- ONSTEMN-5Y-9: Onsite Over Night (Next Business Day) Extended Warranty 5 Years
Note: Extended warranties are not valid in personal residences.
Resources & Downloads
Product Specification Documents (1)
White Papers (1)
Drawings (2)
Warranty Documents (1)
Miscellaneous Documents (2)
Software (4)
- The Display Firmware Update Tool is a utility to assist with updating the firmware in large-screen LCD displays and some models of desktop LCD displays.
- Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.
- Designed for fast and accurate color matching of multiple displays used in a video wall application, Display Wall Calibrator works with Sharp’s award-winning display technology using a color measurement sensor and sophisticated calibration software. The solution automatically adjusts multiple displays used in a video wall so that the color characteristics closely match, thereby creating the visual illusion of a single large display.
- PD Comms Tool (Public Display Communications Tool) is a software application that can be used to configure, control, and test supported Sharp and NEC large screen LCD display models via either RS232 or LAN connections. It can also be used to assist with developing and debugging external control systems by showing the communications protocol for commands exchanged between the software and displays.
