PN-M982
98" Ultra High Definition Commercial Display
Model:
PN-ME982
Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial Sharp PN-ME2 Series large format displays. By focusing on bringing high-powered, integrated and easy-to-use media playback to the customer all while maintaining the proven reliability and quality of previous product, the ME series gives customers a reliable mainstream display to fit all of their digital signage needs. The flexible system-on-chip platform not only allows for high-end media playback via USB or internal storage but since these products are powered by Android 13, they also allow the ability to install separate APK’s if a third-party application needs to be installed. On top of this, the updated OSD design includes new and legacy functionality within a brand new aesthetically appealing and stylistic approach.
Features
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

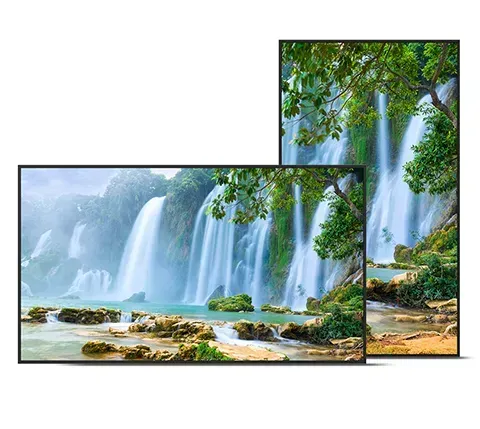

- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Powerful System-on-Chip Design to fit your digital signage needs
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C while supporting both legacy NEC and Sharp protocol
- 450 cd/m² brightness and HDR compatibility will capture the attention of audience in almost any situation
- Integrated Media Player allows for playlist creation and scheduled playback via USB or onboard storage
- 18/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
- Integrated USB-C Connection that not only allows for DP-Alt mode but also upstream capabilities for controlling peripherals through the separate USB-A downstream connection
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Full 3 year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
- Fully compatible with Crestron Connected® software as well as Crestron XiO Cloud® Service
Product Specifications
| Display | |
|---|---|
| Panel Technology | IPS |
| Viewable Image Size | 98" |
| Aspect Ratio | 16:9 |
| Screen Resolution | 3840x2160 |
| Supported Resolutions | USB-C: 640 x 480, 720 x 480, 720 x 576, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 2160, 3840 x 2160, 4096 x 2160 HDMI: 640 x 480, 720 x 480, 720 x 576, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 2160, 3840 x 2160, 4096 x 2160 |
| Pixel Pitch | 0.562 mm |
| Pixels Per Inch | 45 @ native resolution |
| Backlight Type | LED Direct-Lit |
| Brightness (typical) | 450 cd/m2 |
| Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz |
| Active Screen Area | 84.99 x 47.81 in. / 2158.85 x 1214.35mm |
| Orientation | Landscape/Portrait |
| Dimming Capability | Local Dimming Capable |
| Displayable Colors | More than 1.08 billion (10-bit dithered) |
| Color Temperature (Max) (°K) | 15000K |
| Color Temperature (Min) (°K) | 2600K |
| Gamma (Typical) | Native, 2.2, 2.4, S-Gamma, DICOM Sim, Programmable |
Synchronization Range
| Horizontal (Analog/Digital) | USB-C Alt Mode: 30 - 135kHz HDMI: 15 - 135KHz |
| Vertical (Analog) | Digital: 23.0 - 76.0Hz |
Signal Compatibility
| PC Signal Compatibility | Yes |
| Macintosh Signal Compatibility | Yes |
| External Control | LAN and RS232 In - Full external control capabilities |
Connectivity - Input Terminals
| Digital | HDMI (2.0 x 3 with HDCP), USB-C (DP Alt Mode) |
| Audio | Digital TMDS / USB-C Alt Mode |
| External Control | RS-232C, LAN (1000Mb), 3.5mm Mini-Jack (IR Remote) |
| Data | USB 3.0 x1 (5V/0.9A, Downstream), USB 2.0 x1 (5V/0.5A, Downstream), USB 3.0 x1 (Downstream for USB-C), USB-C x1 (Upstream) |
Connectivity - Output Terminals
| Audio | 3.5mm Mini-Jack, Optical Audio Out (SPDIF) |
Power Consumption (typical)
| On | 206.2W |
| ECO Mode Standby | <0.5W |
| Network Standby | 0.5W |
| Power Consumption (max) | 333.6W (Max Brightness), 443.6W (Brightness Max, Volume Max) |
| Power Savings Mode | 2W |
Physical Specifications
| Bezel Width (Left/Right, Top/Bottom) | 0.71 in./0.71 in., 0.71 in./0.71 in. : 18 mm/18 mm, 18 mm/18 mm |
| Dimensions (without stand) (WxHxD) | 86.6 x 49.4 x 2.7 in. / 2198.9 x 1254.6 x 68.6 mm |
| Shipping (WxHxD) | 92.9 x 56.1 x 11.0 in. / 2360.0 x 1425.0 x 280.0mm |
| Net Weight (without stand) | 120.2 lbs. / 54.5 kg. |
| Shipping Weight | 180.8 lbs. / 82.0kg |
| VESA Hole Configuration | 800 x 40 (M8 x 4-hole) |
Environmental Conditions
| Operating Humidity | 20% to 80% |
| Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4-140°F / -20-60°C |
| Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m |
Environmental Compliance
| ENERGYSTAR | Energy Star 8.0 |
Additional Features
- AMX Support
- Automated Email Alert Function
- ARC Support through HDMI1
- CEC Support through all HDMI Connections
- Crestron Roomview Support
- Display Browser Control
- Display Wall Calibrator Compatible
- HDR Support (PQ, HLG, HDR10)
- Key Guide
- NaViSet Administrator 2 Compatible
- Screen Rotation for Portrait Orientation (Home Only)
- Power USB Ports (5V/3A x1, 5V/2A x2, 5V/0.5A x1)
- Real Time Clock
- TileMatrix
- SNMP (Running Change)
- Crestron Connected V2
- Integrated Temperature Sensor
- Integrated USB Media Player
- Full Input Detect Functionality
- Programmable Gamma
- Energy Star 8.0
- Scheduler Function
- Color Temperature Adjustment (2600K - 10000K)
- Vacation Switch
ACCESSORIES
Included:
- 3.0m Power cord
- 3.0m HDMI cable
- Wireless remote control
- Batteries
Optional:
- Wall Mount (WMK-3298T)
- IR/Human Sensor Accessory (KT-RC3)
- Table Top Stand (ST-801)
- Powered External Speaker (SP-RM3a)
Ships With:
- 3m Power cord
- 3.0m HDMI cable
- Wireless remote control
- Batteries
- Setup Guide
Cooling Method
Integrated Temperature Sensor
- 4K Resolution
- Provides the ultimate in screen clarity.
- Built-In Speakers
- Enhance the visual experience with superior sound
- Integrated Ambient Light Sensor
- Integrated Ambient Light Sensor allows the display to automatically adjust its luminance based on the external brightness conditions, allowing for the ideal image in all ambient lighting scenarios.
- Integrated MultiMedia Player
- Allows the ability to play video, audio or image files directly off USB.
- Landscape/Portrait Capable
- Allows for distortion-free display of content in various orientations, creating new application opportunities.
- LED Backlight
- Provides for industry-leading low power consumption and less hazardous materials.
- RS-232C and LAN control capability
- Permits flexible remote-control capabilities from connected devices.
- Three HDMI inputs
- Allows for simultaneous digital connections of high-definition sources.
- TileComp™
- Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix (some data on the screen will be lost in the area of the bezels).
- TileMatrix™
- Allows users to customize a video wall configuration using advanced On Screen Display controls.
- Wired Network Connection
- Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
- Wireless LAN (Optional)
- Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.
3 Year Coverage
- ADVEXMX-3Y-18: Advanced Exchange 2 Day Freight Service+
- ONSTEMN-3Y-18: Onsite 2 Day Freight Service+
4 Year Coverage
- ADVEXMX-4Y-18: Advanced Exchange 2 Day Freight Extended Warranty 4 Years
- EXTWRMN-4Y-18: Extended Warranty 4 Years
- ONSTEMN-4Y-18: Onsite 2 Day Freight Extended Warranty 4 Years
5 Year Coverage
- ADVEXMX-5Y-18: Advanced Exchange 2 Day Freight Extended Warranty 5 Years
- EXTWRMN-5Y-18: Extended Warranty 5 Years
- ONSTEMN-5Y-18: Onsite 2 Day Freight Extended Warranty 5 Years
Note: Extended warranties are not valid in personal residences.
